IRTCPC550SCK2FA

Close Frame Panel PC

DATASHEET DOWNLOADS

Intel® Processors

Touch Technology

Efficient Power Consumption

Double Display

IP65 Front Protection

CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance.
Manufactured in painted sheet metal with IP65 protection.
5-Wire Resistive or Projected Capacitive Multitouch sensor (PCAP).

Details

Intel® Core™ i5-6300U 2,40 GHz
55" Projected Capacitive Multitouch Display (PCAP)

Painted metal sheet
IP65 Front Protection

Fanless compact design
Made in Spain

Specifications

Display
Touch technology	Projected Capacitive MultiTouch (PCAP)
Format	16:9
Resolution	1920 x 1080
Backlight	LED
Brightness	500 cd/m2
Contrast Ratio	4000:1
Viewing Angle	178/178
LED Life Time	50.000 h

System
CPU	Intel® Core™ i5-6300U (6th Generation) 2,40 GHz
Memory	2Gb Scalable to 16Gb
Hard Drive	60/120/240GB SSD. 500GB/1TB SATA.
Graphics	Intel® HD Graphics 520
Chipset	i5-6300U Onboard (SoC)
OS	Win7 Pro / Win7 Embedded / Win10 Pro / Win10 IoT Enterprise / Linux

Input / Ouput
USB Ports	4x USB 3.0
Serial Ports	-
Ethernet	2 x Intel® Giga Ethernet
Video	1 x DVI-I / 1 x DP
Audio	-
Expansión	1 x mSATA (Half Size) / 1 x Mini Card Slot

Mechanical

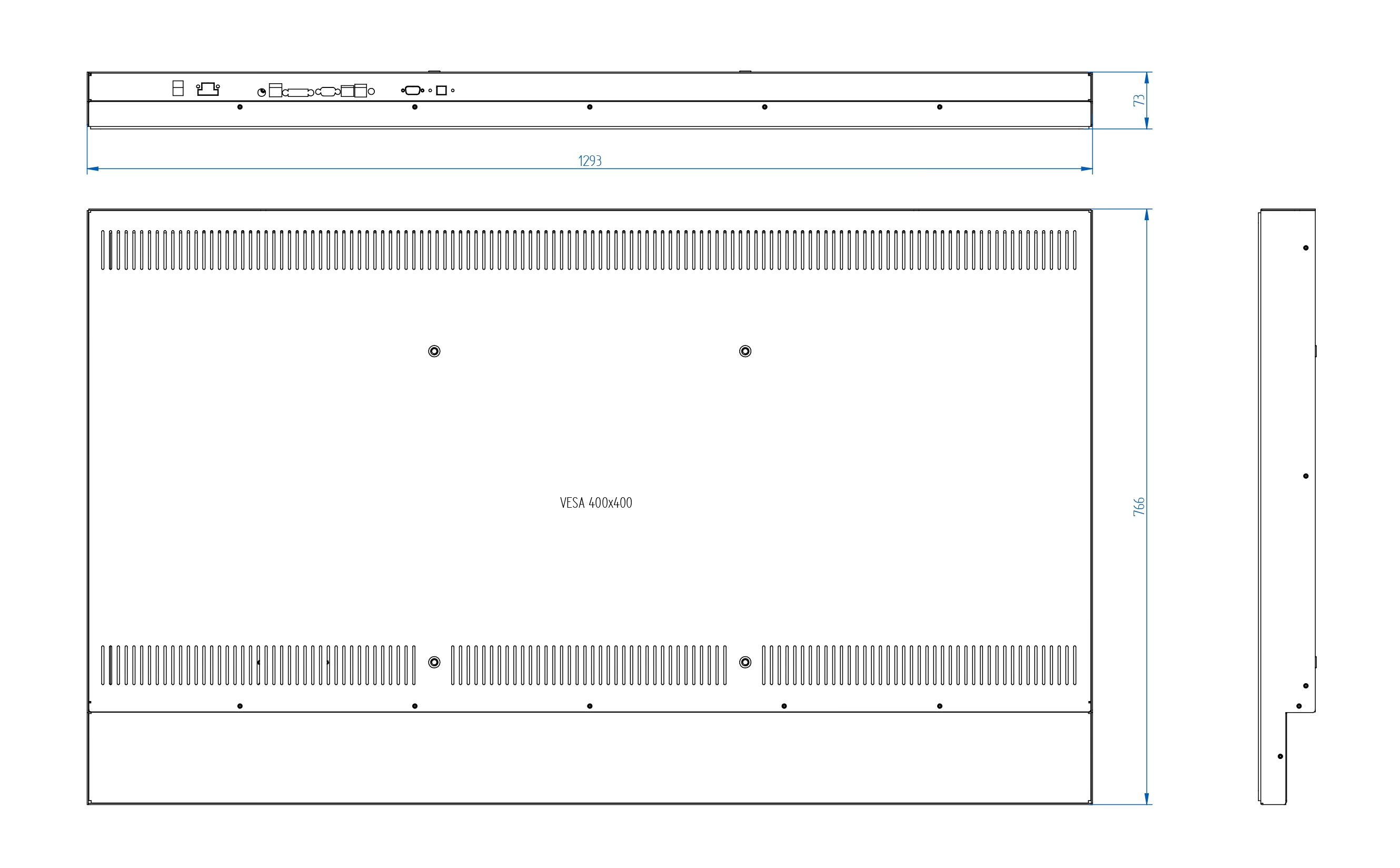

Dimensions	1293 x 766 x 73 mm
Weight	29 kg
Mounting	VESA 400 x 400, Wall, Bracket, Holder
Panel cut	-

Optionals
Screen	High brightness for outdoors use
USB Ports	2 x USB 2.0
Serial Ports	1 x RS-232 / 3 x RS232/422/485
Modem	3G / LTE + GPS
WIFI Module	Wifi 2,4GHz / Wifi 2,4GHz i 5GHz + Bluetooth
Slot PCIe	To Be Consulted
Others	To Be Consulted

Protection / Environmental Conditions
IP & Material	IP65 Painted Metal Plate Front
°C Operation	0º a 60º C
°C Storage	-10º a 70º C
Humidity (no condensation)	0% - 95%

Power Supply
Input Voltage	9-36Vdc (External 110-220V/12Vdc)
Optional Input Voltage	-
