Touch Technology
Efficient Power Consumption
Double Display
IP65 Front Protection
Manufactured in painted sheet metal with IP65 protection.
5-Wire Resistive or Projected Capacitive Multitouch sensor (PCAP).
| Display | |
|---|---|
| Touch technology | 5 Wire Resistive |
| Inches | 21,5" |
| Format | 16:9 |
| Resolution | 1920 x 1080 |
| Backlight | LED |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178/178 |
| LED Life Time | 30.000 h |
| System | |
|---|---|
| CPU | - |
| Memory | - |
| Hard Drive | - |
| Graphics | - |
| Chipset | - |
| OS | - |
| Input / Ouput | |
|---|---|
| USB Ports | 1 x USB (Touch Controller) |
| Serial Ports | - |
| Ethernet | - |
| Video | 1 x HDMI |
| Audio | - |
| Expansión | - |
| Mechanical | |
|---|---|

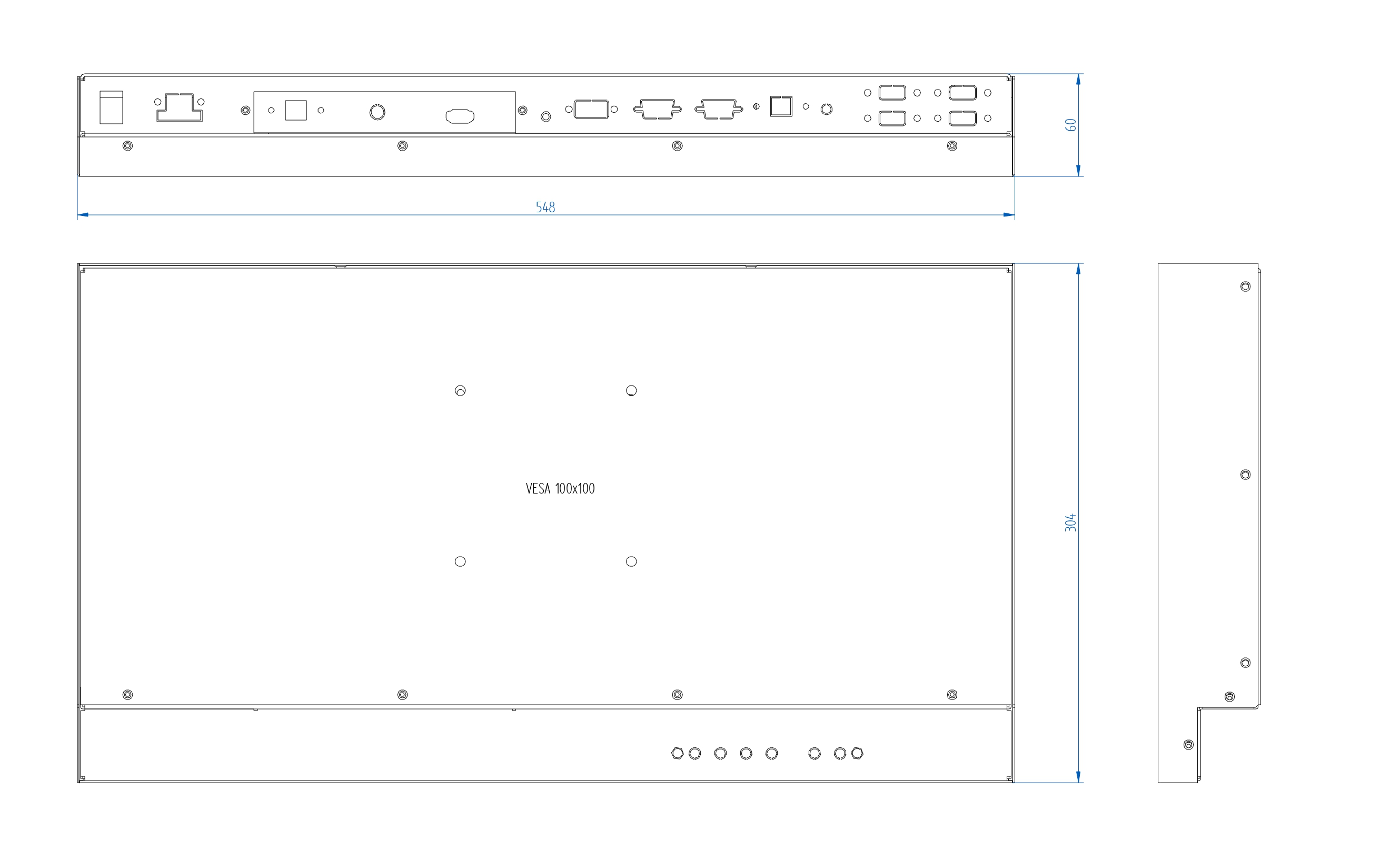

| Dimensions | 548 x 304 x 60 mm |
| Weight | 7,7 kg |
| Mounting | VESA 100 x 100, Wall, Bracket, Holder |
| Panel cut | - |
| Optionals | |
|---|---|
| Screen | High brightness for outdoors use |
| USB Ports | Optional |
| Serial Ports | - |
| Modem | - |
| WIFI Module | - |
| Slot PCIe | - |
| Others | - |
| Protection / Environmental Conditions | |
|---|---|
| IP & Material | IP65 Painted Metal Plate Front |
| °C Operation | 0º a 60º C |
| °C Storage | -10º a 70º C |
| Humidity (no condensation) | 0% - 95% |
| Power Supply | |
|---|---|
| Input Voltage | 12Vdc/19-24Vdc (External power supply 110-220Vac/12Vdc) |
| Optional Input Voltage | - |
